Fine and Coarse Filtration Units Shipped to Russia

22 units of fine and coarse filtration systems have been shipped to Russia. The filtration units are designed for the treatment of water and brine solutions for injection into wells or other technological applications. The filtration units is equipped with a replaceable filter element, a pressure gauge with an operating pressure of up to 10 kgf/cm² for monitoring the permeability of the filter element, and a 1/2" drain valve.

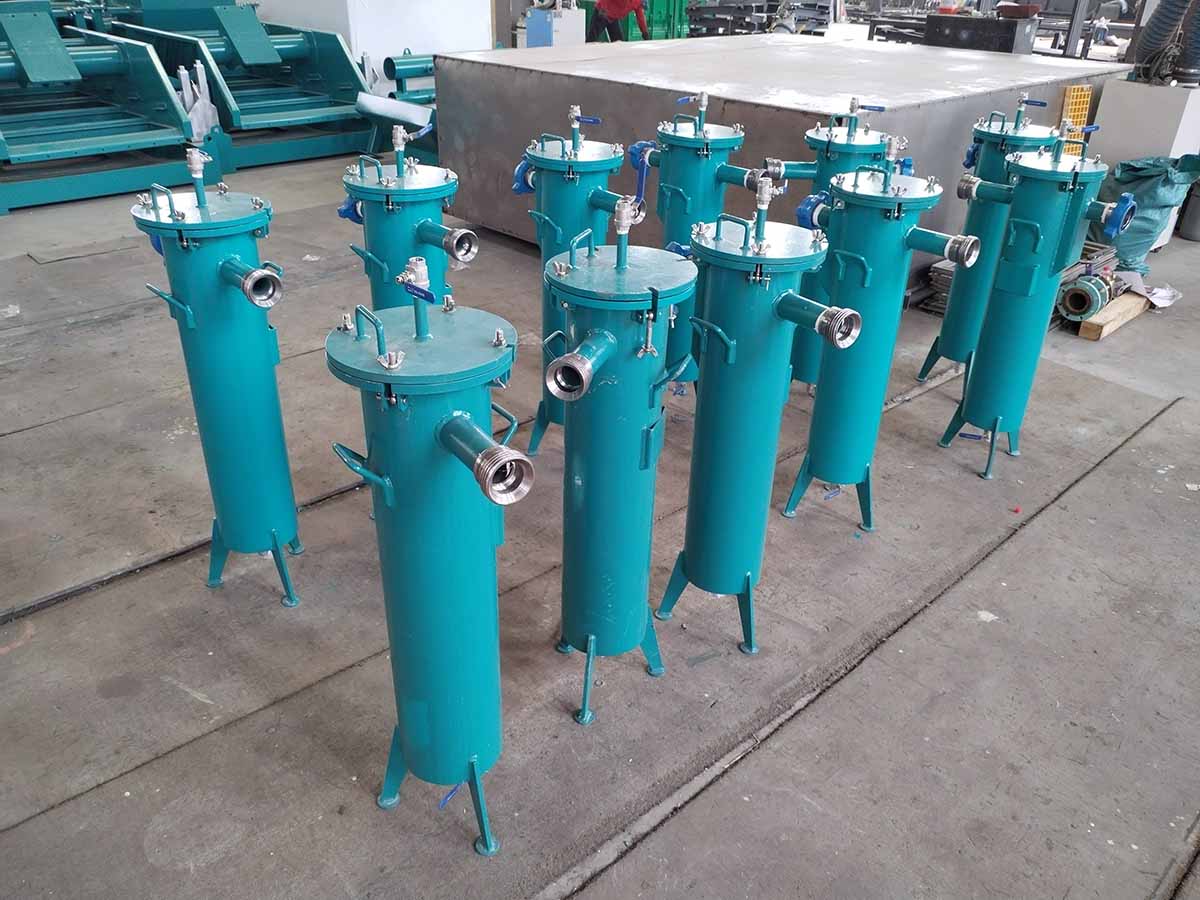

Main Technical Specifications for Fine Filtration Unit
1.    Nominal (operating) pressure, MPa (kgf/cm²) – 1.0 (10)
2.    Filtered medium – water of varying contamination levels, brine solutions for well injection
3.    Operating temperature, °C – from -60 to +40
4.    Capacity, m³/h – 50
5.    Filtration rating of replaceable filter element (set by agreement):
o    Up to 50 μm – F50
o    Up to 25 μm – F25
o    Up to 5 μm – F0.5
6.    Filtration area, m² – 0.29
7.    Retained sediment volume, m³ – 0.003

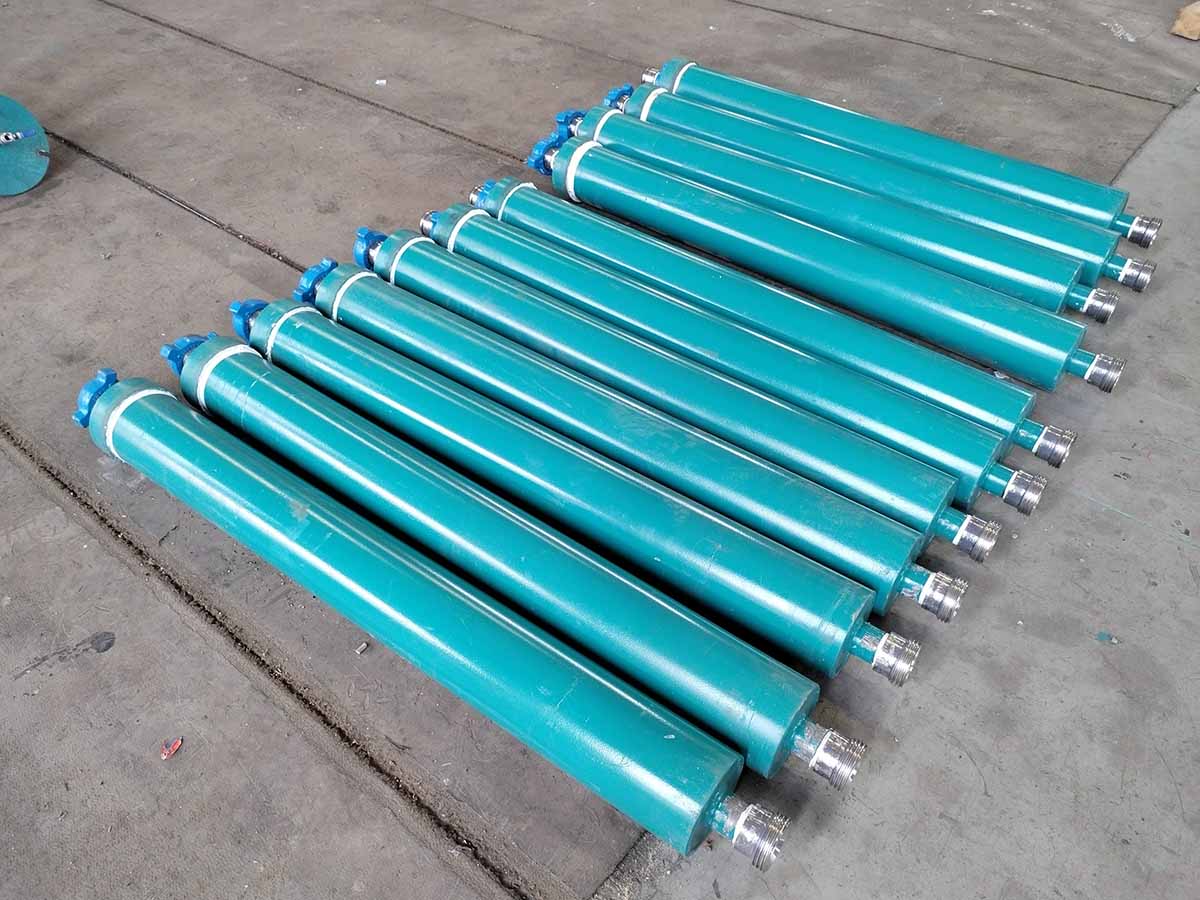

Main Technical Specifications for Coarse Filtration Unit
1.    Main technical characteristics: FU 01
2.    Nominal (operating) pressure, MPa (kgf/cm²) – 1.6 (16)
3.    Filtered medium – water of varying contamination levels, brine solutions for well injection
4.    Operating temperature, °C – from -60 to +40
5.    Corrosion protection of the working inner surface – epoxy coating
6.    Filtration rating of replaceable filter element – mesh with 0.5 mm openings
7.    Capacity, m³/h – 18
